Electrical Muscle Stimulation (EMS) is a proven efficient way of treating muscle injuries by the transmission of electronic pulses that causes passive exercise * The stimulation contraction and relaxation cycle of EMS loosens muscle fibers increases blood flow and stimulates muscle growth * Digital wave technology provides a highly efficient delivery of the wave signal * Dual isolated channels * Pulse Amplitude: 0-90mA peak to peak into 500 ohm load * Pulse frequency adjustable from 1-150 Hz * Pulse width is adjustable from 30 uS ~ 260 uS 10 uS/step * Contraction time is adjustable from 1-30 seconds * Comes complete with carrying case 2 lead wires 9-volt battery 1 package of 4 pre-gelled electrodes and operating manual * E0770 * 1/bx
* Features LCD display and Time Use Memory * Kits include digital muscle stimulator 4 electrodes lead wires one 9V alkaline battery instruction manual and handy carry case * Dual channel - isolated * Function/modes include Constant On-Time Off-Time Ramp Time and a timer * Adjustable pulse amplitude * Adjustable pulse width * Adjustable frequency * HCPCS Suggested Code: E0745
DPL Therapy (Deep Penetrating Light) Therapy is the most advanced non-invasive system available to diminish the appearance of fine lines wrinkles creases furrows and crows-feet * Engineered to be the most powerful and cost effective handheld on the market * Treatment area- 26 cm * Portable * FDA Cleared OTC * Auto shut-off * Manufactured in ISO 13185 and 9001 Quality System Factory * One interchangeable head with 60 LEDs (56 880nm Infrared 4 660nm Red LEDs) * 1 Year Warranty
All channels allow fully-independent treatment setups * Interferential Premodulated Biphasic High Voltage pulsed stimulation and Russian stimulation using any available electrotherapy channel
Product Features & Specifications: * Channel: Dual isolated between channels * Wave Form: Asymmetrical Bi-Phasic Square Pulse * Pulse Amplitude: Adjustable 0-80mA peak into 500 ohm load each channel. * Pulse Rate: Adjustable from 2-150 Hz 1 Hz/step * Pulse Width: Adjustable from 50-300s microseconds 10s/step * Pulse Ramp: 1-8 seconds * Contraction Time: 0-90 seconds * Relaxation Time: 2-90 seconds * Timer: Adjustable from 1-60 minutes or Continuous. * Adjustable in 1 minute each step from 1 to 15 minutes and 5 minutes each from 15 to 60 minutes. * Treatment time countdown automatically. * Power Source: 1x 9V Battery * 3 User-Defined Treatment Modes * Constant: * Constant stimulation based on setting value. Only pulse width pulse rate and timer are adjustable in this mode. * Constant is equal to the Normal mode of a TENS unit. * Synchronous: Stimulation of both channels occurs synchronously. * The ON time including Ramp Up and Ramp Down time. Therefore the setting of ON time should be no less than two times of the Ramp time in this mode. * Alternate: The stimulation of the CH2 will occur after the 1st contraction of CH1 is completed. In this mode the setting of On Time should be no less than two times of the Ramp time. The OFF time should be equal or more than the ON time. * Patient Compliance Meter: This unit can store 60 sets of operation records. Total recorded time is 999 hours. * Low Battery Indicator: A low battery indicator will show up on the LCD when the battery is low. * 1 Year Manufacturer Warranty
* Features LCD display and Time Use Memory * Kits include digital muscle stimulator 4 electrodes lead wires one 9V alkaline battery instruction manual and handy carry case * Dual channel - isolated * Function/modes include Constant On-Time Off-Time Ramp Time and a timer * Adjustable pulse amplitude * Adjustable pulse width * Adjustable frequency * HCPCS Suggested Code: E0745
Two channel device that delivers full powered twin peak stimulation. * Has alternating or continuous stimulation a timer for desired treatment periods and fully adjusted pulse rate. * Operates on (4) AA batteries. * Optional wall adaptor available. * Channels: 2 active outputs 1 dispersive return. * Waveform: Twin Peak monophasic (HVPS). * Adjustable Pulse Rate: 1 Hz - 100 Hz. * Pulse Width: interpulse intervals of 100 microseconds. 5 microseconds at 50% of peak voltage. * Polarity Switch: positive and negative of active electrodes. * Stimulation: continuous or alternating. * Timer: 15 30 60 minutes. * Indicator Light: (2) one for each active output. * Output Voltage: 0 - 350 V adjustable. * Intensity (adj.): 0 - 700 mA peak. * Power Supply: (4) AA batteries or optional medical grade wall adaptor.

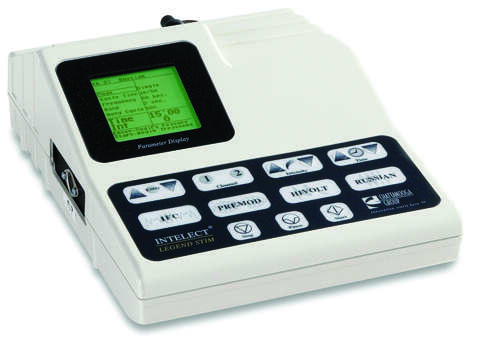

4 Channel Stimulator * 4 Waveforms (Interferential Premodulated High Volt and Russian) * Bright back-lit LCD display * Includes Nylatex wraps both red and black 3 round electodes and lead wires as standard equipment * High Voltage available on all channels * 2 year warranty * ETL listed and cETL listed *

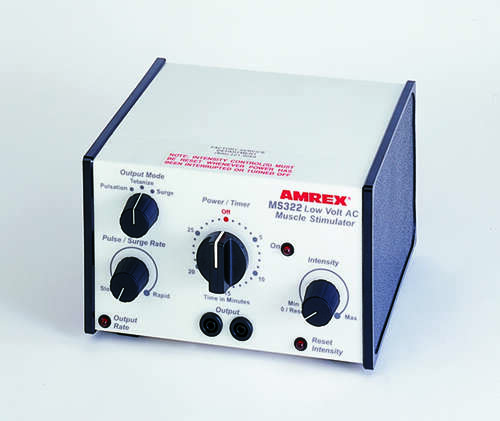

Dual Channel * A low-voltage AC stimulator * Features tetanize variable surge and variable pulsation modes (1-80pps) * Accomodates bifurcated four pad applications *
Single Channel * A low-voltage AC stimulator * Features tetanize variable surge and variable pulsation modes (1-80pps) * Accomodates bifurcated four pad applications *
The Sys*Stim 294 is a four channel neuromuscular stimulator with six stimulation waveforms: Interferential Premodulated Medium Frequency Biphasic High Volt and Microcurrent * Up to four different treatment protocols may be run simultaneously giving maximum treatment flexibility * The Sys*Stim 294 has soft-touch control knobs to allow the clinician to adjust the stimulation intensity with confidence * Weight: 9.4 pounds (4.3 kg) * Dimensions: 5 H x 14.5 D x l0 L * Warranty: 2 years *

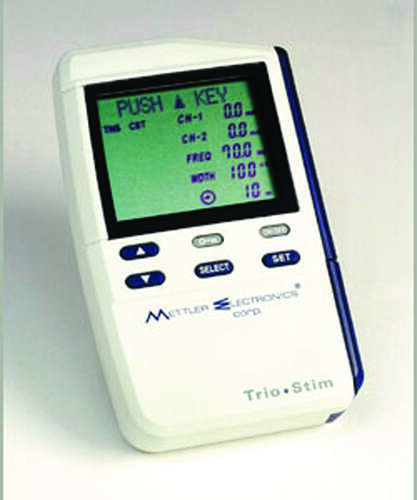

* The Trio*Stim is a battery-operated * 2 channel neuromuscular electrical stimulator featuring 3 therapeutic modes: TENS Muscle Stimulation and Microcurrent * This two-channel unit allows you to provide a device for pain control with either TENS or Microcurrent stimulation or you can use the same device for muscle rehabilitation re-education and spasm reduction * Has soft-touch control knobs to adjust intensity with confidence * Battery operated 9 volt * 2 year warranty * CPT Code: E0745
Intensity control is adjustable from 0-80 mA 500 ohm load * Pulse rate is adjustable from 2-150 Hz * Dual isolated channels * Pulse width is selectable: 100 200 or 300 micro-seconds * Contraction time is adjustable from 2-30 seconds * Relaxation time is adjustable from 1-30 seconds * Ramp time is adjustable from 1-6 seconds * Metal belt clip * Comes complete with carrying case 2 lead wires 9-volt battery 1 package of 4 pre-gelled electrodes and operating manual * 3 Year Limited Warranty *

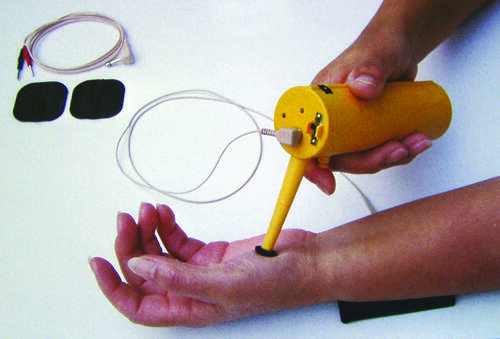

* Operates on 9 volt battery * Effective easy-to-use electronic muscle/neuromuscular stimulators * Easy one hand operation including current adjustment active probe positioning and on/off control * Two year warranty on materials and workmanship * Weight: 5 ounces * Ideal for facial and smaller peripheral muscles
* Operates on 9 volt battery * Effective easy-to-use electronic muscle/neuromuscular stimulators * Easy one hand operation including current adjustment active probe positioning and on/off control * Two year warranty on materials and workmanship * Weight: 5 ounces * Ideal for facial and smaller peripheral muscles
In contrast to TENS Units and Muscle Stimulation which apply alternating current Galvanic Stimulators apply direct current * Direct current creates an electrical field over the treated area that theoretically changes blood flow * The positive pad behaves like ice causing reduced circulation to the area under the pad and reduction in swelling * The negative pad behaves like heat causing increased circulation reportedly speeding healing * PGS 123 Pulsed Galvanic Stimulator - This Pulsed Galvanic Stimulator is a high voltage galvanic system * This Galvanic Unit is battery powered and generates small pulse of electrical current * Each pulse in much shorter in duration (5ms) and can achieve much higher voltage than conventional stimulator

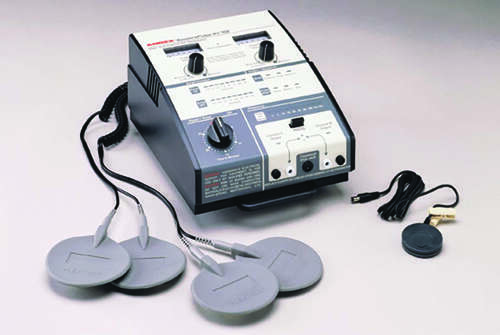

A dual channel high volt pulsed DC stimulator * The SynchroPulse HV752 is ideal for muscle rehabilitation prevention of muscle atrophy pain management and edema reduction * The sophisticated circuitry of the SynchroPulse HV752 provides dual channel stimulator output with dual indicator meters and dual intensity controls * The practitioner can precisely manage treatment with a selectable frequency range selectable independent on/off surge duration and selectable pulse width * The SynchroPulse HV752 stimulator produces pulsation tetanize surge and reciprocal output * The additional benefit of bipolar application eliminates the need for a single large dispersive electrode * Designed to promote patient assurance the patient controlled treatment stop switch allows the patient to discontinue stimulator output at the press of a button * Combination Therapy * The electrical muscle stimulation of the SynchroPulse HV752 may be applied separately or may be combined with ultrasound simultaneously through the ultrasound transducer using an external Amrex SynchroSonic U/50 *
Single Channel * The Sys*Stim 206 is a one-channel neuromuscular stimulator that features four different waveforms in a light-weight package * The narrow pulse is suited for TENS while the wide and AC pulses can be used for muscle stimulation * Direct Current can be used to stimulate denervated muscles or perform iontophoresis * The Sys*Stim 206 is an ideal companion to the Sonicator 716 for combination therapy * Weight: 5.6 pounds (2.5kg) * Dimensions: 4.3 H x 6 D x 13.4 L * Warranty: 1 year *
1 Channel * 208 stimulator * The Sys*Stim 208 is a one channel low-volt stimulator with Surge Pulse and Tetanize modes * It has easy-to-operate knobs that control stimulation intensity and frequency a digital timer and a remote patient cut-off switch * It is a small portable stimulator with a clinical appearance * Weight: 1.4 pounds * Dimensions: 2.5 H x 6 D x 8 L *
2 Channel * 208a stimulator * The Sys*Stim 208A is a two-channel low-volt stimulator with Surge Pulse Tetanize and Reciprocation modes. It has easy-to-operate knobs that control stimulation intensity and frequency a digital timer and a remote patient cut-off switch. It is a small portable stimulator with a clinical appearance * Weight: 1.5 pounds * Dimensions: 2.5 H x 6 D x 8 L *
