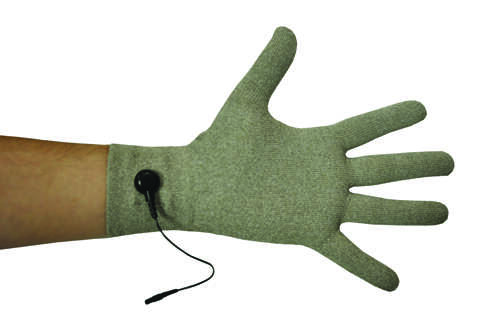

* Ideal when used in therapy for various treatments such as: Carpal Tunnel Syndrome Arthritic pain RSD Post Operative Swelling Pain Management Sports Injuries * Sleeves are used as an electrode to complement a regular electrode
* Ideal when used in therapy for various treatments such as: Carpal Tunnel Syndrome Arthritic pain RSD Post Operative Swelling Pain Management Sports Injuries * Sleeves are used as an electrode to complement a regular electrode * One Size Fits All Very stretchy material.
* Ideal when used in therapy for various treatments such as: Carpal Tunnel Syndrome Arthritic pain RSD Post Operative Swelling Pain Management Sports Injuries * Sleeves are used as an electrode to complement a regular electrode
Product Features & Specifications: * Channel: Dual isolated between channels * Wave Form: Asymmetrical Bi-Phasic Square Pulse * Pulse Amplitude: Adjustable 0-80mA peak into 500 ohm load each channel. * Pulse Rate: Adjustable from 2-150 Hz 1 Hz/step * Pulse Width: Adjustable from 50-300s microseconds 10s/step * Pulse Ramp: 1-8 seconds * Contraction Time: 0-90 seconds * Relaxation Time: 2-90 seconds * Timer: Adjustable from 1-60 minutes or Continuous. * Adjustable in 1 minute each step from 1 to 15 minutes and 5 minutes each from 15 to 60 minutes. * Treatment time countdown automatically. * Power Source: 1x 9V Battery * 3 User-Defined Treatment Modes * Constant: * Constant stimulation based on setting value. Only pulse width pulse rate and timer are adjustable in this mode. * Constant is equal to the Normal mode of a TENS unit. * Synchronous: Stimulation of both channels occurs synchronously. * The ON time including Ramp Up and Ramp Down time. Therefore the setting of ON time should be no less than two times of the Ramp time in this mode. * Alternate: The stimulation of the CH2 will occur after the 1st contraction of CH1 is completed. In this mode the setting of On Time should be no less than two times of the Ramp time. The OFF time should be equal or more than the ON time. * Patient Compliance Meter: This unit can store 60 sets of operation records. Total recorded time is 999 hours. * Low Battery Indicator: A low battery indicator will show up on the LCD when the battery is low. * 1 Year Manufacturer Warranty
* Features LCD display and Time Use Memory * Kits include digital muscle stimulator 4 electrodes lead wires one 9V alkaline battery instruction manual and handy carry case * Dual channel - isolated * Function/modes include Constant On-Time Off-Time Ramp Time and a timer * Adjustable pulse amplitude * Adjustable pulse width * Adjustable frequency * HCPCS Suggested Code: E0745
Dual Channel * 4250 mHz * Unit comes complete with: set of 2 wires pack of 4 silver/silver chloride self sticking electrodes 9V alkaline battery ac adaptor instruction book and attractive carry case * Dual channel - quadra polar * Adjustable pulse amplitude * Carrier frequency plus interference frequency * Sweep and treatment timers * Shipping Carton Size: 12 L x 10 W x 6 H
Dual Channel * 4000 mHz * Unit comes complete with: set of 2 wires pack of 4 silver/silver chloride self sticking electrodes 9V alkaline battery ac adaptor instruction book and attractive carry case * Dual channel - quadra polar * Adjustable pulse amplitude * Carrier frequency plus interference frequency * Sweep and treatment timers * Shipping Carton Size: 12 L x 10 W x 6 H * HCPCS Suggested Code: E0730 * Interferential stimulators use a fixed carrier frequency of 4 000 Hz per second and also a second adjustable frequency of 4 001-4 400 Hz per second * When the fixed and adjustable frequencies combine (heterodyne) they produce the desired signal frequency (Interference frequency)
In contrast to TENS Units and Muscle Stimulation which apply alternating current Galvanic Stimulators apply direct current * Direct current creates an electrical field over the treated area that theoretically changes blood flow * The positive pad behaves like ice causing reduced circulation to the area under the pad and reduction in swelling * The negative pad behaves like heat causing increased circulation reportedly speeding healing * PGS 123 Pulsed Galvanic Stimulator - This Pulsed Galvanic Stimulator is a high voltage galvanic system * This Galvanic Unit is battery powered and generates small pulse of electrical current * Each pulse in much shorter in duration (5ms) and can achieve much higher voltage than conventional stimulator
US 1000 3rd Edition is an FDA approved portable therapeutic ultrasound unit * New - now with 3 power output settings * Comes with hard carry case & ultrasound gel * Generates deep heat through a piezoelectric crystal sound head * The piezoelectric crystal converts electrical energy into a strong vibratory sound wave or ultrasound * Sound waves cause vibration in soft tissue cells increasing temperature and inducing vasodilation * Power Source: AC Adaptor (DC 24V/200mA) * Output Frequency: 1.0 MHz +-10% * Temporal Maximum Power: 8W +-10% * Output Intensity: Low 1.6W (0.11 W/cm2) Medium 2.6W (0.24 W/cm2) High 4.6W (0.47 W/cm2) * Duty Cycle: Low 7% Med 15% Hi 30% * Output Mode: Pulse * Pulse Width: 5.4ms +-10% * Repetition Rate: 150Hz +10% * Timer Setting: 30 minutes auto-off +-1% * Weight of unit: 120 g * 6 Month Manufacturer Warranty on unit
System includes device lead wires four self-adhesive reusable electrodes 9V battery hard plastic carrying case and instruction manual * 3 Modes: Standard Modulate and Burst * Dual Channel * 30 and 60 minutes or continuous timer * Adjustable Pulse Width: 50-250 Microseconds * Pulse Rate: 2-150 Hz * Pulse Amplitude: 0-80 mA each channel * Waveform: Asymmetrical biphasic square pulse * One year warranty * FDA approved
